KBR-TT | Twin-Track Conveyor for Pallet Handling

High-load capacity and efficient floor-level design, ideal for pallet handling and compact spaces.

Low-Profile Frame: Compact 65mm frame height with high-strength 3mm U-channel construction.

Customisable Pitch: Roller pitches from 52mm to 186mm for tailored pallet handling.

Versatile Design: Handles 1200mm x 800mm Euro & 1200mm x 1000mm UK pallets with smooth, reliable performance.

Efficient and Reliable Pallet Handling for Industrial Applications

The KBR-TT Twin-Track Conveyor is a reliable, floor-mounted gravity solution designed for efficient pallet handling. With its low-profile U-channel frame and robust construction, this conveyor is ideal for transporting wooden pallets, totes, and heavy loads in warehouses, factories, and distribution centres. Featuring 50mm or 60mm rollers and a variety of pitch options, the KBR-TT ensures stability and durability in industrial environments.

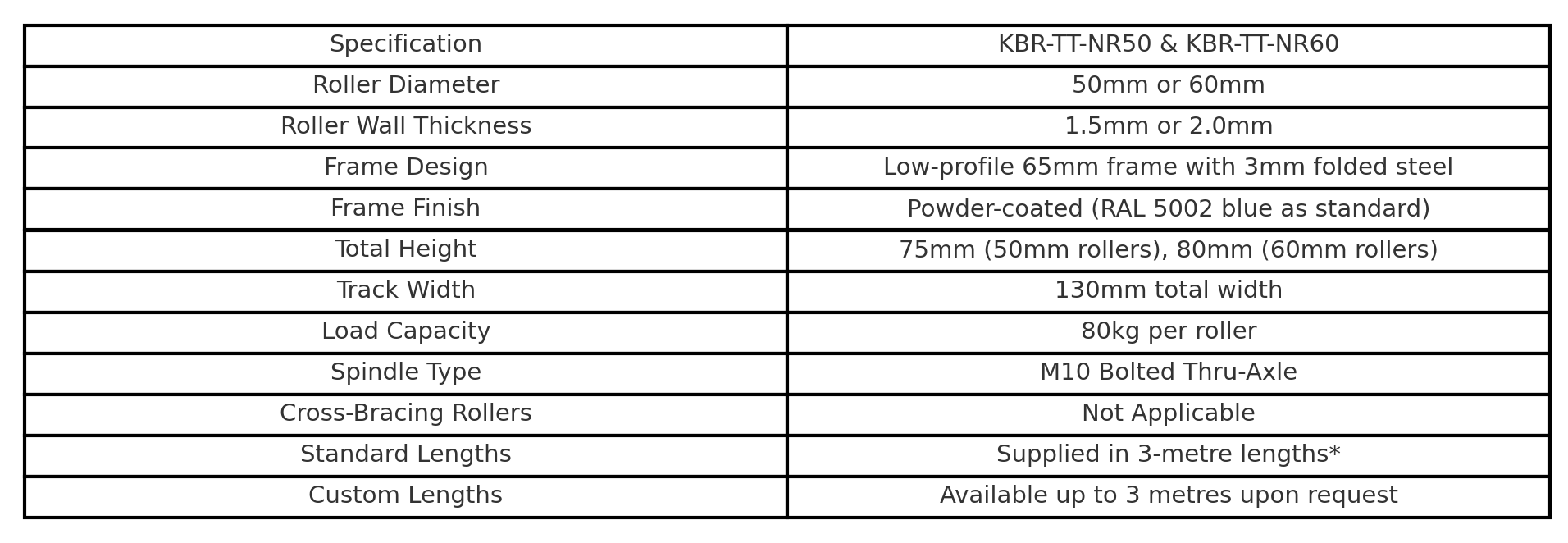

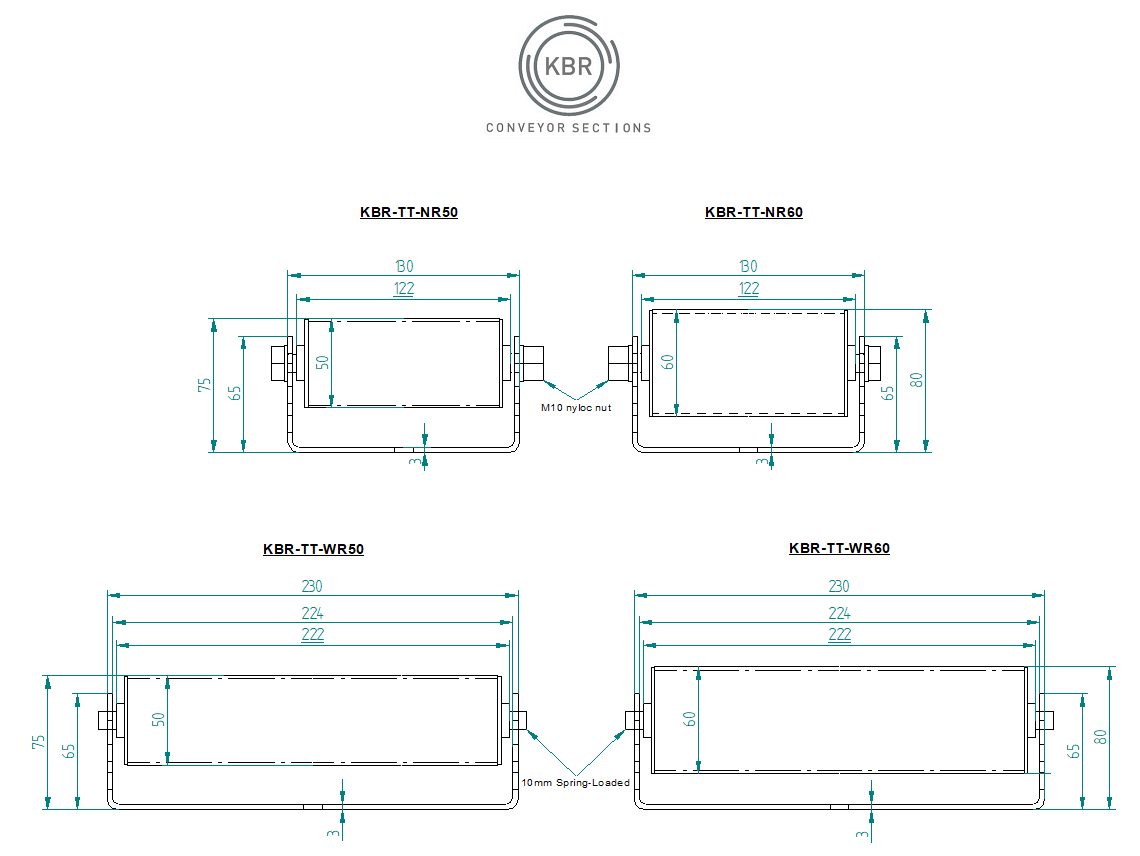

KBR-TT Frontal CAD Drawing Technical Details

Why Choose the KBR-TT Pallet Conveyor?

KBR-TT | Key Features

Low-Profile U-Channel Frame: Manufactured from high-grade 3mm sheet metal, with a frame height of just 65mm and total track heights of 75mm (NR50 / 50mm rollers) or 80mm (NR60 / 60mm rollers).
Roller Options: Available in 50mm or 60mm diameter rollers to suit various load capacities.
Customisable Pitch: Roller pitches include 52mm, 78mm, 104mm, 130mm, 156mm and 182mm for tailored configurations.
Wider Support Surface: Total track width of 130mm ensures reliable handling of 800mm or 1000mm wide pallets with two or three tracks.
Durable Finish: Powder-coated frame for long-lasting performance and corrosion resistance.
Standard Section Lengths: Supplied in 3m sections for easy installation and scalability.

Got more questions? Get in touch!

KBR-TT-WR Pallet Conveyors

Twin track roller conveyor with wider rollers for light pallet loads and varied pallet widths

KBR-TT-WR (50mm or 60mm Rollers) Designed with wider rollers, they are perfect for light pallet loads and varying pallet widths, making placement easier and operations smoother.

Product Brochure

KBR-TT-NR Pallet Conveyors

Narrow twin track roller conveyor for heavy-duty multiple lane pallet handling.

KBR-TT-NR (50mm or 60mm Rollers) Our narrow twin track roller conveyors are ideal for heavy-duty applications. Perfect for multiple lanes—2, 3, or 4 tracks wide—they handle a range of pallet sizes with ease

Product Brochure

Product Information: KBR-TT (Twin-Track Conveyors)

Roller Details

Twin-Track Roller Specifications

Our Twin-Track conveyors feature 50 or 60mm conveyor rollers as standard fitted with a robust through-axle for ease of fitment and increased frame strength. We also offer two skatewheel options: blue PVC and BZP steel skatewheels.

Roller Options (Standard)

50 x 1.5mm steel or stainless steel rollers
60 x 2.0mm steel rollers
Fitment (KBR-TT-NR) Single through-axle with M8, M10, or M12 fittings
Fitment (KBR-TT-WR) Drilled and tapped or spring-loaded
Bearing Capacity: 80kg per roller (standard)
Operating Temperature: -45°C to +100°C

BZP Steel Skatewheels

Diameter: 48mm
Width: 15mm
Load Capacity: 20kg
Operating Temperature: -30°C to +140°C

Blue PVC Skatewheels

Diameter: 48mm
Width: 16.8mm
Load Capacity: 15kg
Operating Temperature: 0°C to +80°C

Optional Stainless Steel Bearings

Available with stainless steel bearings and spindles for food and pharmaceutical-grade conveyors, ensuring high hygiene standards and durability.

Robust Design and Support

Rollers are positioned 10mm or 15mm above the frame line and bolted securely into the frame with a single through-axle.
For conveyors wider than our standard track width, rollers can be provided with drilled and tapped spindles for ease of fitment and frame strength for both KBR-TT-NR & KBR-TT-WR conveyors.

Easy Maintenance and Spares

50mm and 60mm conveyor roller spares and skatewheels parts are readily available for purchase via our online shop, providing quick replacements and reducing downtime.

Technical Specifications

Standard Roller Centres: 52mm (Min) - 182mm (Max)
Roller Width: 112mm (Standard)
Over-Bearing Width: Roller Length (OB) + 122mm
Total Frame Width: Roller Length (RL) + 130mm
Standard Section Lengths: 3000mm (2990mm)
Custom Section Lengths: Available up to 3000mm
Conveyor Frame Depth: Standard 65mm (custom frames available)
Profile Material: 3.0mm sheet steel
Support Type: Bolt holes through frame to floor

Accessories

KBR-TT accessories | Enhance Your Conveyor System

Customise Your Pallet Conveyor

End Stops

Narrow twin track roller conveyor with an end stop for pallet control.

Fixed end plates to prevent pallets from rolling off the track.

Track Connectors

Frame joining brackets aligning twin track roller conveyors.

Seamlessly join multiple tracks for longer configurations.

Frame Finish

Pallet Conveyors for Warehouse Conveyors

Available on request for branding or specific environments.

Manual Turntable

Rotating Pallet Skid Manual Conveyor Turntable

Rotate large objects with manual pallet turn tables

Custom Sections

Twin-Track Conveyors with skatewheel rollers for pallet handling

Options available for various pallet sizes with revised width / depth.

Roller Materials

Floor mounted plastic skate-wheel conveyor for pallets

Choose from PVC, BZP, Stainless Steel or Skatewheels.

KBR-TT Parts & Spares

Simple maintenance conveyors with conveyors and parts available to browse and buy online.

Shop For Spares

Applications for KBR-TT Conveyor Systems

The KBR-TT Twin-Track Conveyor is perfect for

Warehousing

Efficient staging and transport of pallets within storage facilities.

Manufacturing

Moving heavy materials between production areas.

Distribution Centres

Reliable handling of pallets in order fulfilment operations.
