Incline Swan Neck Belt Conveyors with Low-Level Infeed and High-Level Outfeed
Incline swan neck belt conveyors are specifically designed to manage the efficient transition of materials within various industrial applications. These conveyors feature a distinctive low-level infeed section that remains flat, an inclined middle section, and a high-level outfeed section which is also horizontal. This configuration, resembling the shape of a letter "Z," is ideal for scenarios requiring the movement of materials from a low entry point to a high exit point in an efficient and controlled manner.
The unique design allows for a smooth and controlled flow of materials from one elevation to another, which is particularly beneficial in situations where space constraints or specific processing requirements are present. The flat low-level infeed section facilitates easy loading of materials, while the inclined section efficiently moves materials to a higher level. Finally, the horizontal top section helps ensure that materials fall precisely into the centre of bulk bags, sacks, bins, or onto other conveyors or machinery, providing stable and accurate discharge. This feature is especially important for achieving targeted and tidy loading, minimising waste and spillage, and enhancing overall operational efficiency.
This versatile and efficient solution is particularly useful for complex production lines, enhancing productivity and operational efficiency.

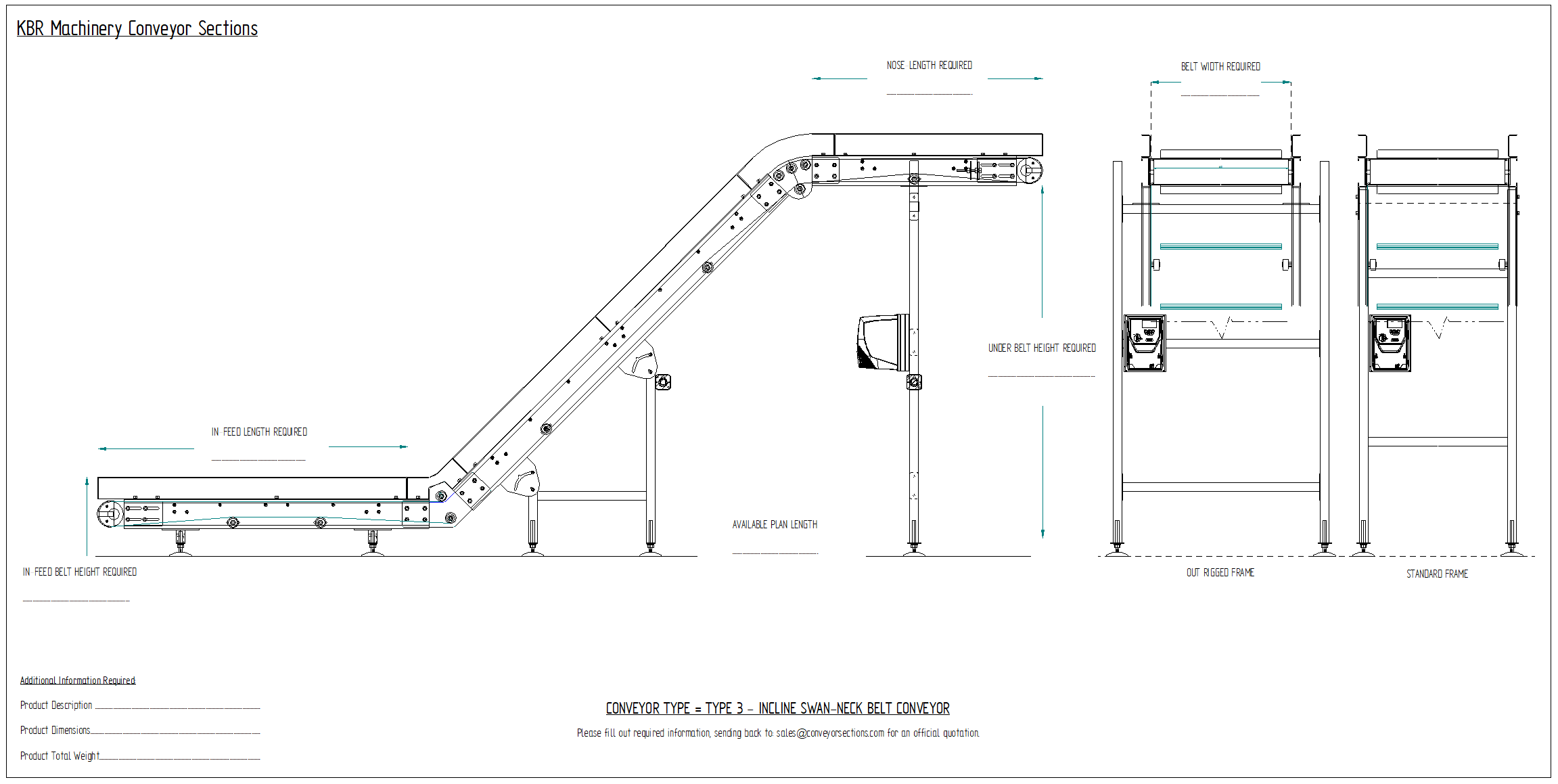

KCB TYPE 3 - Incline Swan Neck Belt Conveyors
- Horizontal Infeed: Fits into tight spaces underneath machines’ waste drop points.
- Customisable Features: Can be equipped with guarding, hoppers, and deflecting plates to guide materials into belt flight pockets.
- Controlled Movement: Ensures smooth transportation of goods along the conveyor, with the capability to incline up to a 45-degree angle.
- Extended Outfeed Nose Section: Controls the flow of materials into bags, sacks, or bins, ensuring central placement.
- Durable Construction: Built to high-quality standards for arduous applications in plastics, recycling, scrap waste, etc.
- Space Efficiency: Requires less plan length compared to straight incline conveyors.
Advantages of Swan Neck Conveyors
Industries & Applications
Swan neck belt conveyors are employed in a variety of industries due to their adaptable design and efficiency. Industries such as plastics, recycling, and scrap waste management benefit greatly from these conveyors. The conveyor's ability to fit into tight spaces and handle materials with precision makes it ideal for managing waste drop points underneath machinery. Additionally, in food processing and packaging, these conveyors ensure the smooth transition of goods, maintaining hygiene and reducing contamination risks. The ability to incline up to 45 degrees while maintaining controlled movement allows for efficient material handling in manufacturing plants, warehouses, and distribution centers.
Benefits
Swan neck belt conveyors offer numerous benefits that enhance operational efficiency. First and foremost, their space-efficient design requires less plan length compared to traditional straight incline conveyors, making them ideal for facilities with limited space. The customisable features, such as guarding, hoppers, and deflecting plates, allow for tailored solutions to meet specific needs, guiding materials accurately into belt flight pockets. Furthermore, the extended outfeed nose section ensures precise placement of materials into bags, sacks, or bins, reducing spillage and waste. With their durable construction, these conveyors are built to withstand arduous applications, ensuring longevity and reliability in demanding environments.
Custom Proven Designs for Bespoke Applications
Customisation is a key advantage of swan neck belt conveyors, enabling them to meet the unique requirements of various applications. By offering features like guarding, hoppers, and deflecting plates, these conveyors can be tailored to handle different types of materials and operational conditions. For instance, in the recycling industry, conveyors can be equipped with specific hoppers to manage different waste streams efficiently. In the plastics industry, deflecting plates can guide materials into the correct belt flight pockets, ensuring smooth transportation. This flexibility allows businesses to optimise their production lines, enhance productivity, and reduce operational costs through bespoke conveyor solutions.
Conveyor Summary
In summary, swan neck belt conveyors provide a versatile and efficient solution for material handling across multiple industries. Their unique Z-shaped design, comprising a low-level infeed section, an inclined middle section, and a high-level outfeed section, facilitates the smooth transition of materials from low to high points. This configuration is particularly beneficial in space-constrained environments and for specific processing needs. The conveyors' ability to ensure central placement of materials into bulk bags, sacks, or bins enhances accuracy and reduces waste. With their customisable features and durable construction, swan neck belt conveyors stand out as a reliable choice for improving operational efficiency and productivity in diverse industrial applications.
Need More Information About Incline Conveyors?
All conveyors are custom-built to order, ensuring they meet your unique specifications and requirements. Customised belt conveyors are designed and manufactured to your specific needs. For a tailored quotation and to discuss your project in detail, please contact us. Our team is ready to assist in finding the perfect solution for your conveyor needs.
